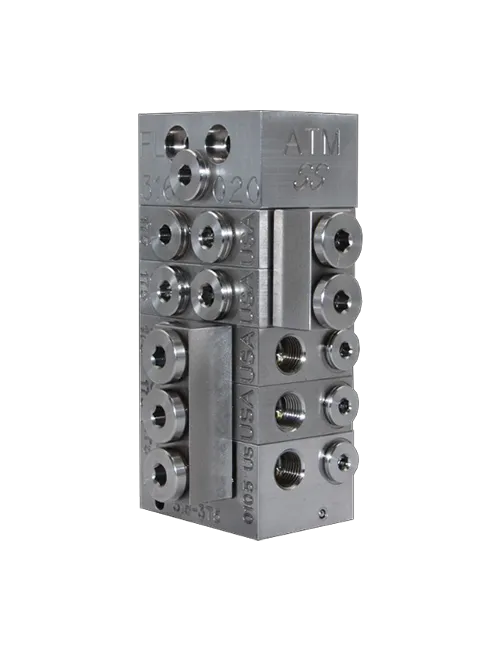

ORFL
The ORFL valve is the only progressive distribution valve to offer the features and benefits of all other valves combined into one compact unit.
This configuration offers unique benefits and more flexibility then the competition.
ORFL FEATURES
SIMPLE
Easier to assemble than other modular valves.
O-ring face seals and dowel pins (not section specific gaskets) eliminate assembly confusion
Visual vertical cross porting
Tie rods for up to 24 outlets (12 sections)
FEATURE PACKED
Smaller & more options than other designs.
Inbuilt outlet check valves
Each section can be converted from twin to single outlets by plug removal
Two inlet ports so manual lube option is easy
COMPACT, FEATURE PACKED & MOST OF ALL VALUE PACKED
ORFL valves are available in a range of configurations to suit almost any application (Including retrofitting to existing systems) and in many systems can work without the need for changing any other system components. Simply select the outlet ratios you require and order the components or factory assembled valves accordingly.
Seven Displacement Options
0.025-cc/cycle
0.050-cc/cycle
0.050-cc/cycle
0.100-cc/cycle
0.125-cc/cycle
0.150-cc/cycle
0.175-cc/cycle
Three Material Selections
Zinc plated Steel
303 stainless
316 stainless
Flexible porting configuration
Both side & front ports can be used as outlets or for accessories
Both side & front ports can be used for cross porting up to 2 side ports or 4 front ports
Dual inlets enables one manual lube point to lubrication the complete zone
