ENVIROSPRAY®
Envirospray® is a digitally controlled spray system that uses OMNICONTROL® technology to provide a ground speed proportional spray system with a distance based spot spray feature. The system uses the truck speed sensor to automatically control water pump speeds and spray head selection to suit the operators settings. OMNICONTROL® nodal technology enables modules to be added or removed to customize systems and reduces wiring by up to 70% over traditional systems.
ENVIROSPRAY® FEATURES
INNOVATIVE
Variable motor design optimizes performance & minimizes hydraulic temperatures
Motor stroke adjusts to absorb total hoist pump flow, reducing hydraulic operating pressures
System can control water pump speeds up to 3000 rpm, maximizing cannon and spray performance
The system integrates with all major truck brands without changing the OEM hydraulic flow paths
ELEGANT
Touch screen user interface
Intuitive touch operation negates the need for detailed training manuals
10.4” screen provides graphical feedback of system operation and performance
OMNICONTROL® can control multiple systems from the one platform decluttering drivers cabins
ROBUST
IP6k9k controllers with CAN interface
Controllers are certified IP6k9k are enclosed within aluminum housings and also guarded by SS covers or mounted within SS control boxes for maximum protection
Each output has a dedicated plug with an associated input for full closed loop control
ENVIROSPRAY® OPTIMIZES YOUR WATER TRUCK EFFECTIVENESS
Envirospray® is available in a range of configurations to suit almost any application (Including retrofitting to existing systems) and will work on most common truck types. Standard configurations are able to control up to 6 spray heads, 3 remote cannons, proportional foam/detergent injection, water/foam/detergent tank level display, two camera inputs, water fill station control automatic shutdown, hydraulic tank level monitoring, cloud based data capturing and more.

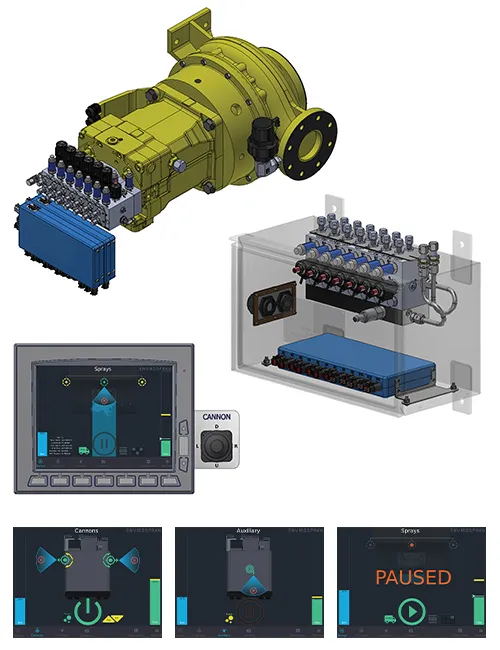

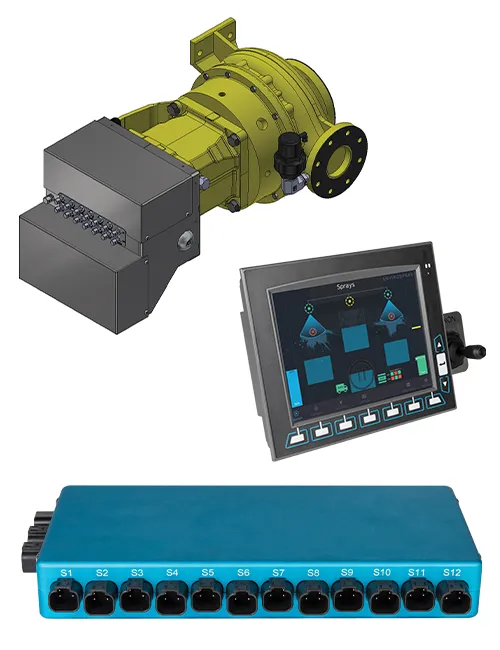

Close Coupled Pump/Motor and spray/cannon control module
ISO 125x100x250 standard mount
Controls up to 6 spray heads
Controls 1 rear cannon with fog/jet nozzle
Full diagnostic transducers
Digital Live Diagnostics
Hydraulic flow monitoring
Hydraulic pressure monitoring
Coil current monitoring
Truck input monitoring
Motor control monitoring
Spray control monitoring
Cannon control monitoring
Foam control monitoring
Water level monitoring
All functions from a single Touch Screen interface
Spray Head, Cannon & AUX Control
Water application rate and spot spray control
Modular Additional Control Boxes
Integrated manifold
Integrated CAN controller
Controls up to 6 spray heads
Controls 1 cannon with fog/jet nozzle
